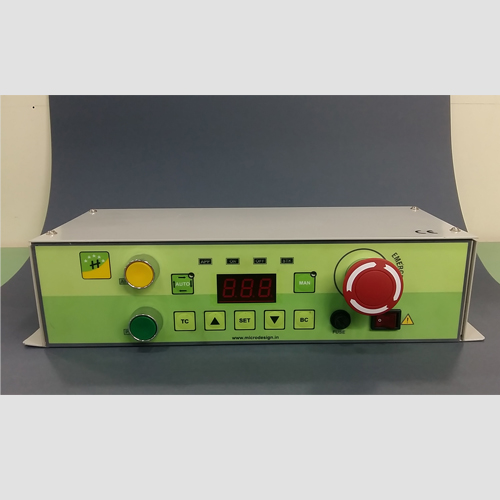

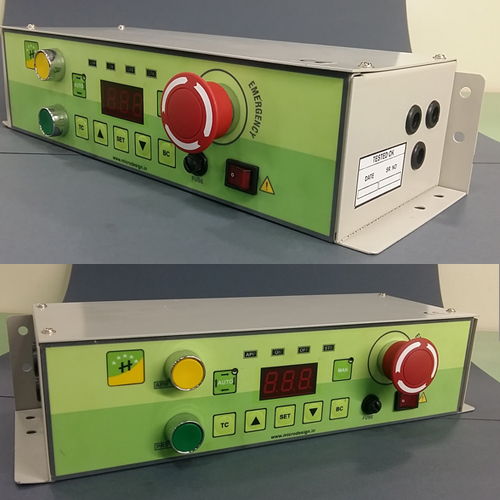

Specifically designed to control Hydro Pneumatic press has proven its functional ability. More than 600 controllers are running smoothly in the industrial application. Controller has standard features like controlling Approach , Power stroke solenoid .Digital parameter setting for Power On & Off delay time, Stroke counts. Safety barrier can be easily integrated with controller. High quality electronics components with RFI/EMI protection , CE approval make it first choice for the end user application.

User Features :

• • High quality sturdy design
• • Manual / Auto selection
• • Approach ,Power stroke control ( 230Vac solenoid)
• • Parametric programming for Approach time (0.1to 99.9), Power stroke on/off time (0.1- 99.9) sec.
• • Power stroke count (1 to 999)
• • Two Button start for operator hand safety
• • Air Curtain Interruption input
• • Pressure Fault input
• • Display of Batch Count
• • Display of Total Count.



Technical Features :

• • Microcontroller based design
• • Display with 3 digit
• • Approach , Power stroke control output through OEN relay
• • Display of Batch , Total Count
• • High Power Transient Protection
• • EMI/RFI filter
• • High quality Electronic components
• • Available with 230Vac,110Vac option
