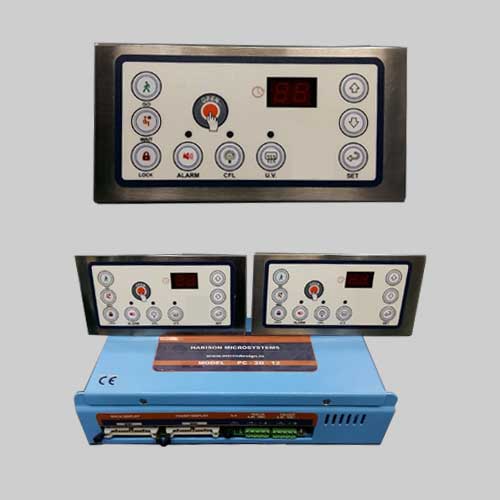

Static Pass Box Controller

We are manufactures of Pass box interlocking systems for Static & Dynamic Pass Box Controller. Our product are designed and manufactured considering long trouble free operation with easy serviceability. Designed products are tested for EMI/RFI interferes to avoid filed failure and are CE approved.

User Features :
  • • Pass box door interlocking logic
  • • UV Lamp Controlling
  • • CF Lamp Controlling
  • • Supports 2 Door Interlocking
  • • Status Indication on MMI : Go , Wait , Door Locked
  • • Buzzer Output
  • • Alarm Mute
  • • Door Delay time between Door opening is programmable in min/sece
  • • Seven Segment display for delay time indication, Door status indication
  • • Parametric setting through up/down/ set key
  • • SS laser cut MMI with easy installation
  • • User specific software upgrade possible

  • Technical Features :
  • • Microcontroller based design
  • • Emi/ Rfi tested design
  • • High quality electronic component
  • • Seven segment indication with parametric setting program
  • • Hmi with LED indication
  • • 12 Vdc output for magnets
  • • OEN relay output
  • • Opto Isolation for inputs and outputs
  • • 230Vac / 110 Vac option available
